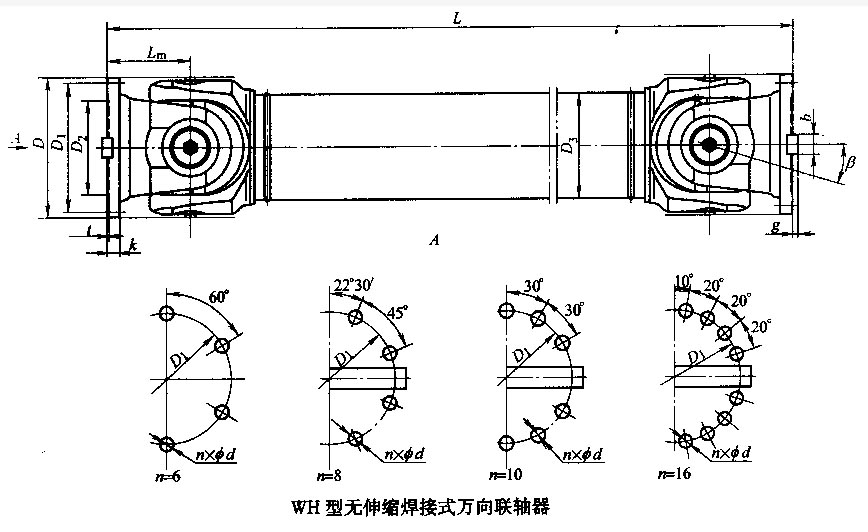

SWC-WH無伸縮焊接式萬向聯軸器基本參數與主要尺寸(JB/T 5513-91) mm
|
型號 |
回轉 直徑 D |
公稱轉矩
Tn kN.m |
疲勞轉矩 Tf kN.m |
軸線折角 β |
尺寸 |
轉動貫量kg.m2 |
質量kg | |||||||||||
|
Lmin |
D1 (js11) |
D2 (H7) |
D3 |
Lm |
n-d |
k |
t |
b (h9) |
g |
Lmin |
增長 100mm |
Lmin |
增長 100mms | |||||
|
SWC100WH |
100 |
1.25 |
0.63 |
≤25 |
243 |
84 |
57 |
60 |
55 |
6-9 |
7 |
2.5 |
- |
- |
0.0039 |
0.00019 |
4.5 |
0.35 |
|
SWC120WH |
120 |
2.5 |
1.25 |
≤25 |
307 |
102 |
75 |
70 |
65 |
8-11 |
8 |
2.5 |
- |
- |
0.0096 |
0.00044 |
7.7 |
0.55 |
|
SWC150WH |
150 |
5 |
2.5 |
≤25 |
350 |
130 |
90 |
89 |
80 |
8-13 |
10 |
3 |
- |
- |
0.0371 |
0.00157 |
18 |
0.85 |
|
SWC180WH |
180 |
12.5 |
6.3 |
≤25 |
480 |
155 |
105 |
114 |
110 |
8-17 |
17 |
5 |
- |
- |
0.1500 |
0.00700 |
48 |
2.8 |
|
SWC225WH |
225 |
40 |
20 |
≤15 |
520 |
196 |
135 |
152 |
120 |
8-17 |
20 |
5 |
32 |
9.0 |
0.3650 |
0.0234 |
78 |
4.9 |
|
SWC250WH |
250 |
63 |
31.5 |
≤15 |
620 |
218 |
150 |
168 |
140 |
8-19 |
25 |
6 |
40 |
12.5 |
0.8470 |
0.0277 |
124 |
5.3 |
|
SWC285WH |
285 |
90 |
45 |
≤15 |
720 |
245 |
170 |
194 |
160 |
8-21 |
27 |
7 |
40 |
15.0 |
1.7560 |
0.0510 |
185 |
6.3 |
|
SWC315WH |
315 |
125 |
63 |
≤15 |
805 |
280 |
185 |
219 |
180 |
10-23 |
32 |
8 |
40 |
15.0 |
2.8930 |
0.0795 |
262 |
8.0 |
|
SWC350WH |
350 |
180 |
90 |
≤15 |
875 |
310 |
210 |
267 |
194 |
10-23 |
35 |
8 |
50 |
16.0 |
5.0130 |
0.2219 |
374 |
15.0 |
|
SWC390WH |
390 |
250 |
125 |
≤15 |
955 |
345 |
235 |
267 |
215 |
10-25 |
40 |
8 |
70 |
18.0 |
8.4060 |
0.2219 |
506 |
15.0 |
|
SWC440WH |
440 |
355 |
180 |
≤15 |
1155 |
390 |
255 |
325 |
260 |
16-28 |
42 |
10 |
80 |
20.0 |
15.790 |
0.4744 |
790 |
21.7 |
|
SWC490WH |
490 |
500 |
250 |
≤15 |
1205 |
435 |
275 |
325 |
270 |
16-31 |
47 |
12 |
90 |
22.5 |
26.540 |
0.4744 |
1014 |
21.7 |
|
SWC550WH |
550 |
710 |
355 |
≤15 |
1355 |
492 |
320 |
426 |
305 |
16-31 |
50 |
12 |
100 |
22.5 |
48.320 |
1.3570 |
1526 |
34.0 |
