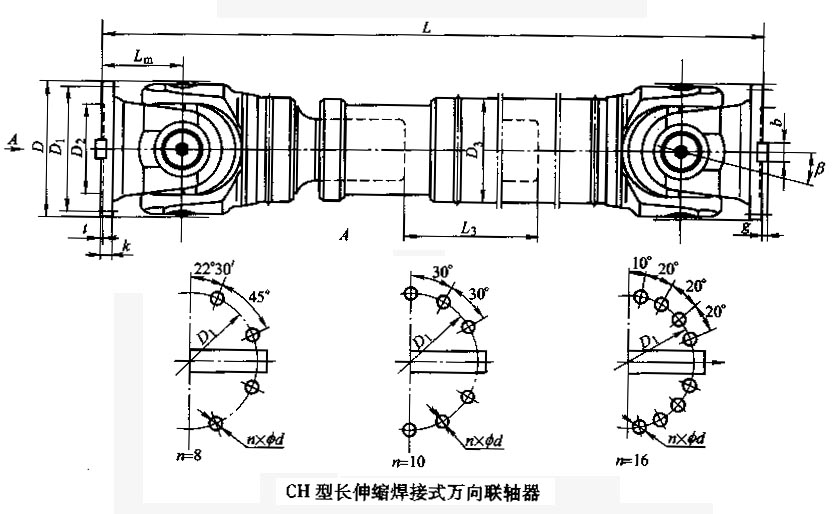

SWC-CH長伸縮焊接式萬向聯軸器基本參數與主要尺寸(JB/T 5513-91) mm
|
型號 |
回轉 直徑 D |
公稱轉矩
Tn kN.m |
疲勞轉矩 Tf kN.m |
軸線折角 β |
伸縮量 Ls |
尺寸 |
轉動貫量kg.m2 |
質量kg | |||||||||||
|
Lmin |
D1 (js11) |
D2 (H7) |
D3 |
Lm |
n-d |
k |
t |
b (h9) |
g |
Lmin |
增長 100mm |
Lmin |
增長 100mm | ||||||
|
SWC180CH1 |
180 |
12.5 |
6.3 |
≤25 |
200 |
925 |
155 |
105 |
114 |
110 |
8-17 |
17 |
5 |
- |
- |
0.181 |
0.0070 |
74 |
2.8 |
|
SWC180CH1 |
700 |
1425 |
0.216 |
104 | |||||||||||||||
|
SWC225CH1 |
225 |
40 |
20 |
≤15 |
220 |
1020 |
196 |
135 |
152 |
120 |
8-17 |
20 |
5 |
32 |
9 |
0.561 |
0.0234 |
132 |
4.9 |
|
SWC225CH2 |
700 |
1500 |
0.674 |
182 | |||||||||||||||
|
SWC250CH1 |
250 |
63 |
31.5 |
≤15 |
300 |
1215 |
218 |
150 |
168 |
140 |
8-19 |
25 |
6 |
40 |
12.5 |
1.016 |
0.0277 |
190 |
5.3 |
|
SWC250CH2 |
700 |
1615 |
1.127 |
235 | |||||||||||||||
|
SWC285CH1 |
285 |
90 |
45 |
≤15 |
400 |
1475 |
245 |
170 |
194 |
160 |
8-21 |
27 |
7 |
40 |
15 |
2.156 |
0.0510 |
300 |
6.3 |
|
SWC285CH2 |
800 |
1875 |
2.360 |
358 | |||||||||||||||
|
SWC315CH1 |
315 |
125 |
63 |
≤15 |
400 |
1600 |
280 |
185 |
219 |
180 |
10-23 |
32 |
8 |
40 |
15 |
3.812 |
0.0795 |
434 |
8.0 |
|
SWC315CH2 |
800 |
2000 |
4.150 |
514 | |||||||||||||||
|
SWC350CH1 |
350 |
180 |
90 |
≤15 |
400 |
1715 |
310 |
210 |
267 |
194 |
10-23 |
35 |
8 |
50 |
16 |
7.663 |
0.2219 |
672 |
15.0 |
|
SWC350CH2 |
800 |
2115 |
8.551 |
823 | |||||||||||||||
|
SWC390CH1 |
390 |
250 |
125 |
≤15 |
400 |
1845 |
345 |
235 |
267 |
215 |
10-25 |
40 |
8 |
70 |
18 |
12.730 |
0.2219 |
817 |
15.0 |
|
SWC390CH2 |
800 |
2245 |
13.617 |
964 | |||||||||||||||
|
SWC440CH1 |
440 |
355 |
180 |
≤15 |
400 |
2110 |
390 |
255 |
325 |
260 |
16-28 |
42 |
10 |
80 |
20 |
22.540 |
0.4744 |
1312 |
21.7 |
|
SWC440CH2 |
800 |
2510 |
24.430 |
1537 | |||||||||||||||
|
SWC490CH1 |
490 |
500 |
250 |
≤15 |
400 |
2220 |
435 |
275 |
325 |
270 |
16－31 |
47 |
12 |
90 |
22.5 |
33.970 |
0.4744 |
1554 |
21.7 |
|
SWC490CH2 |
800 |
2620 |
35.870 |
1779 | |||||||||||||||
|
SWC550CH1 |
550 |
710 |
355 |
≤15 |
500 |
2585 |
492 |
320 |
426 |
305 |
16-31 |
50 |
12 |
100 |
22.5 |
72.790 |
1.3570 |
2585 |
34 |
|
SWC550CH2 |
1000 |
3085 |
79.570 |
3045 | |||||||||||||||
