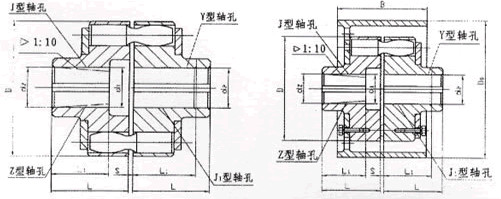

HL、HLL(LX、LXZ)型(帶制動輪）彈性柱銷聯軸器的參數及主要尺寸：(GB/T 5014-85<2003>) mm
|
型號 |
公稱轉矩
N.m |
軸孔直徑
d1,d2,dz |
軸孔長度L、L1 |
D |
S |
D0 |
B |
質量
kg | |||
|
Y,J,J1,Z | |||||||||||
|
HL |
HLL |
HL |
HLL |
HL |
HLL | ||||||
|
HL1
(LX1) |
- |
160 |
12-24 |
27-52 |
- |
90 |
2.5 |
-- |
-- |
2 |
-- |
|
HL2
(LX2) |
HLL1
(LXZ1) |
315 |
20-35 |
38-82 |
38-82 |
120 |
2.5 |
200 |
85 |
5 |
11 |
|
HL3
(LX3) |
HLL2/HLL3
(LXZ2/LXZ3) |
630 |
30-48 |
60-112 |
60-112 |
160 |
2.5 |
200/315 |
85/132 |
8 |
14/25 |
|
HL4
(LX4) |
HLL4/HLL5
(LXZ4/LXZ5) |
1250 |
40-63 |
84-142 |
84-142 |
195 |
3 |
315/400 |
132/168 |
22 |
40/59 |
|
HL5
(LX5) |
HLL6/HLL7
(LXZ6/LXZ7) |
2000 |
50-75 |
107-142 |
84-142 |
220 |
3 |
400/500 |
168/210 |
30 |
69/91 |
|
HL6
(LX6) |
HLL8/HLL9
(LXZ8/LXZ9) |
3150 |
60-85 |
107-172 |
107-172 |
280 |
4 |
400/500 |
168/210 |
53.4 |
88/113 |
|
HL7
(LX7) |
HLL10/HLL11
(LXZ10/LXZ11) |
6300 |
70-110 |
107-212 |
107-212 |
320 |
4 |
500/630 |
210/265 |
98 |
156/189 |
|
HL8
(LX8) |
HLL12
(LXZ12) |
10000 |
80-125 |
167-212 |
132-212 |
360 |
5 |
630 |
265 |
119 |
326 |
|
HL9
(LX9) |
HL13
(LXZ13) |
16000 |
100-140 |
167-252 |
167-252 |
410 |
5 |
710 |
298 |
197 |
337 |
|
HL10
(LX10) |
HLL14/HLL15
(LXZ14/LXZ15) |
25000 |
110-180 |
167-302 |
167-302 |
480 |
6 |
710/800 |
298/335 |
322 |
458/504 |
|
HL11
(LX11) |
- |
31500 |
130-220 |
202-352 |
- |
540 |
6 |
- |
- |
520 |
- |
|
HL12
(LX12) |
- |
63000 |
160-260 |
242-410 |
- |
630 |
7 |
- |
- |
714 |
- |
|
HL13
(LX13) |
- |
100000 |
190-300 |
282-470 |
- |
710 |
8 |
- |
- |
1057 |
- |
|
HL14
(LX14) |
- |
160000 |
240-340 |
330-550 |
- |
800 |
8 |
- |
- |
1956 |
- |
